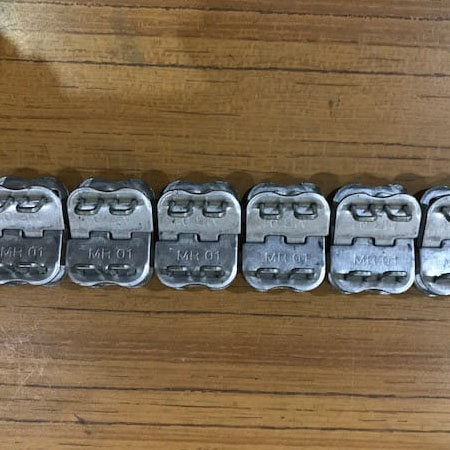

These fasteners are quick and easy to install in Thin PVC, Plastic, Cotton & Rubber light to medium duty conveyor belts. The fasteners staples Z are driven through the belt with a punch and hammer. These fasteners suitable for baggage handling, food wood and agricultural industry.

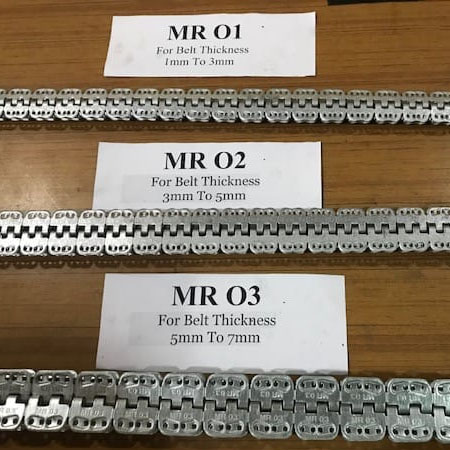

| HINGED AND STAPLED FASTENER SELECTION CHART | |||||||
| Fastener Code | Tension Range | Suitable Belt Thickness | Min. Pulley Dia. | Connecting Pin Dia. | |||
| kN/m | mm | inch | mm | inch | mm | inch | |
| MR01 | 17 | 1.5-3.2 | 1/16"-1/8" | 50 | 2" | 2.4" | 0.080" |
| MR02 | 28 | 3.2-5.6 | 1/8"-7/32" | 70 | 3" | 3.4 | 0.141" |
| MR03 | 40 | 4.5-6.5 | 3/16"-1/4" | 100 | 3.6" | 3.6 | 1.600" |

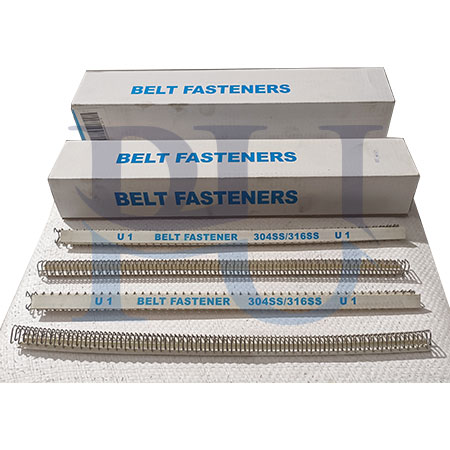

Available Clipper Hook type Fasteners HG1, HG 2, HG 4, U7 in SS 304 Grade material Available with Special Continuous Hinge Wire.One Box can Join upto 1800 mm width Belt

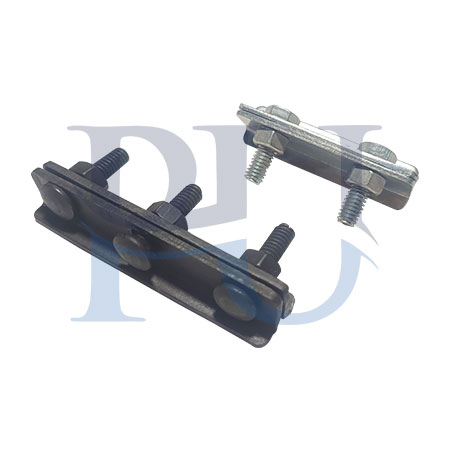

These L-Type, and Knurling type fasteners, are suitable for connecting belts of a maximum thickness of 3/8 (9.5mm). One of the strongest & most secure of all types of belt fasteners for leather, hair, balata, cotton & rubber belting etc.
SIZES available for 2" to6" comes.
