Our Square Head Bolt for Stone Crusher mechine available: 1"x4", 5", 6", 8", 9", 10", 12",14", 16",18", 20", 22" & 24"
Long in : 4.6
Grade Material with Square Head: 37mm x 37mm
Head Thickness: 19mm
Thread Length: 2.5" to 5".
We can manufacture same in 3/4", 1.25'& 1.5" also.
Size:
M36x415mm to 800MM with Plain Washer & Hex Nut

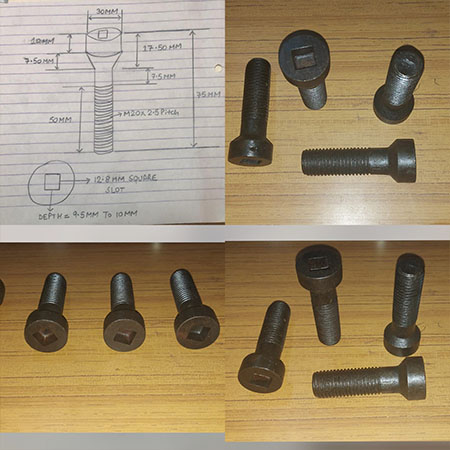

Our 8.8 Grade High Tension Taper Bolt M20 x 2.5 pitch with Squat Punch available in size: Total length 75mm, Square Punch: 10mm square, Head height (including taper) 18mm Head Dia 30mm. These are Hardened and Tempered and are in AUTO BLACK FINISH for rush prevention.
U Bolt for Stone Machine available In Size 4", 5", 6", 8", 9", 10" in 4.6 Grade material Available with Holding Plate and Nutsin Rod Dia 13 mm.
Available in 4 sizes in 4.6 Grade Material Zinc Plated :
J bolt M12x160mm
J bolt M12x180mm
J bolt M16x200mm
Available T bolt with Plain Washer & Hex Nut
M36x550MM, 670MM, 800MM, 900 MM & 950MM Long
Thread Length 200mm
Head Size 65MM x 36MM & Thickness 25MM In EN8 D Material
